1、RabbitMQ环境搭建和上手体验

Navy2026-07-19mqrabbitmq

本文介绍了windows环境下的单机RabbitMQ的搭建和docker、k8s环境下的RabbitMQ集群搭建，最后通过一个SpringBoot+RabbitMQ集成项目简单演示了RabbitMQ的基本使用

1、RabbitMQ环境的搭建

由于rabbitmq是由erlang语言编写的，所以，如果要在服务器（windows或Linux等）上直接安装rabbitmq，则需要先在对应服务器上安装erlang环境。而且，erlang环境的版本和rabbitmq的版本号还有一个对应关系，如果版本不匹配，则rabbitmq可能无法正常运行，会报一个不匹配的错。具体的版本对应关系参考：

版本对照表open in new window

我这里选择的是4.2.0-rc.1，所以对应的erlang版本选择的是OTP-27.3.4.14

erlang：https://github.com/erlang/otp/releases#release-OTP-27.3.4.13

rabbitmq：https://github.com/rabbitmq/rabbitmq-server/releases?page=2#release-v4.2.0-rc.1

1.1、Windows单机环境

1.1.1、erlang安装

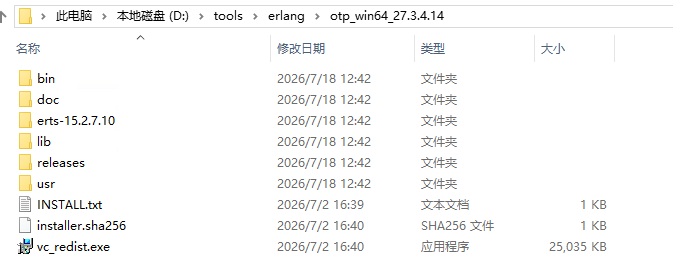

安装包解压：

配置环境变量
验证

如果没有报错，能够正常显示出erlang的版本号，则说明erlang环境配置成功

1.1.2、安装rabbitmq

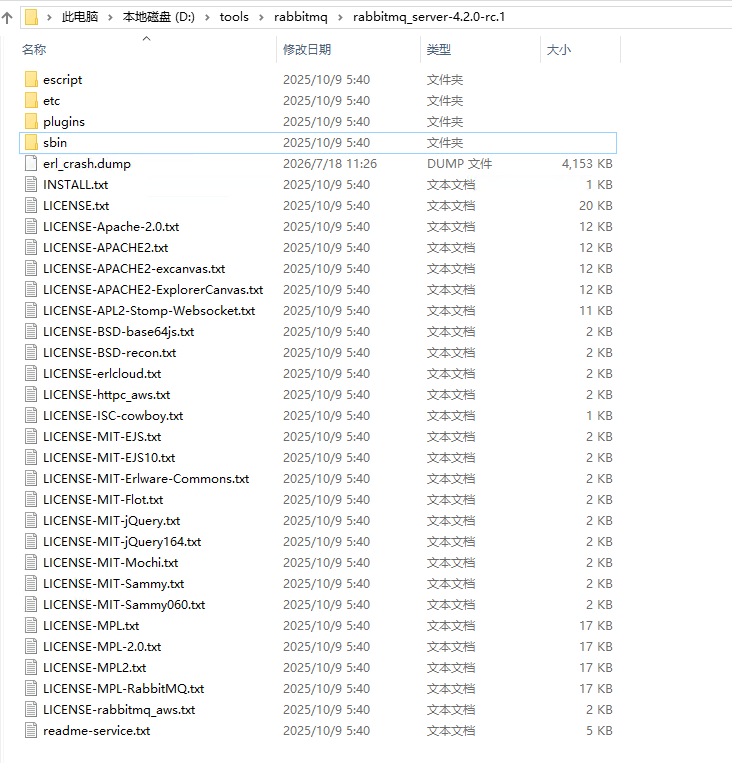

安装包解压

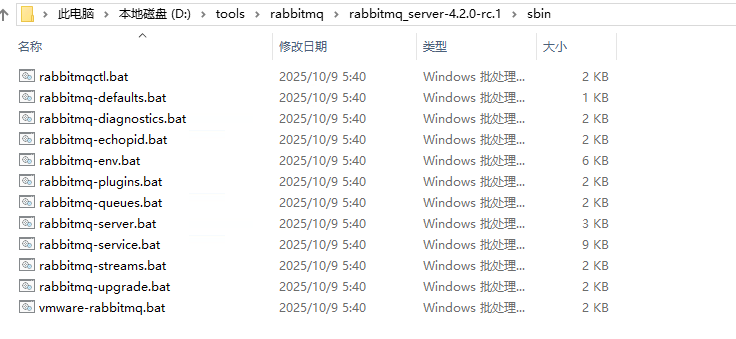

其中sbin目录就是操作rabbitmq的所有命令工具：

启动

解压之后什么都不用做，通过命令就可以直接运行

# 这里先启用rabbitmq的管理插件
rabbitmq-plugins.bat enable rabbitmq_management

# 正式启动
rabbitmq-server.bat start

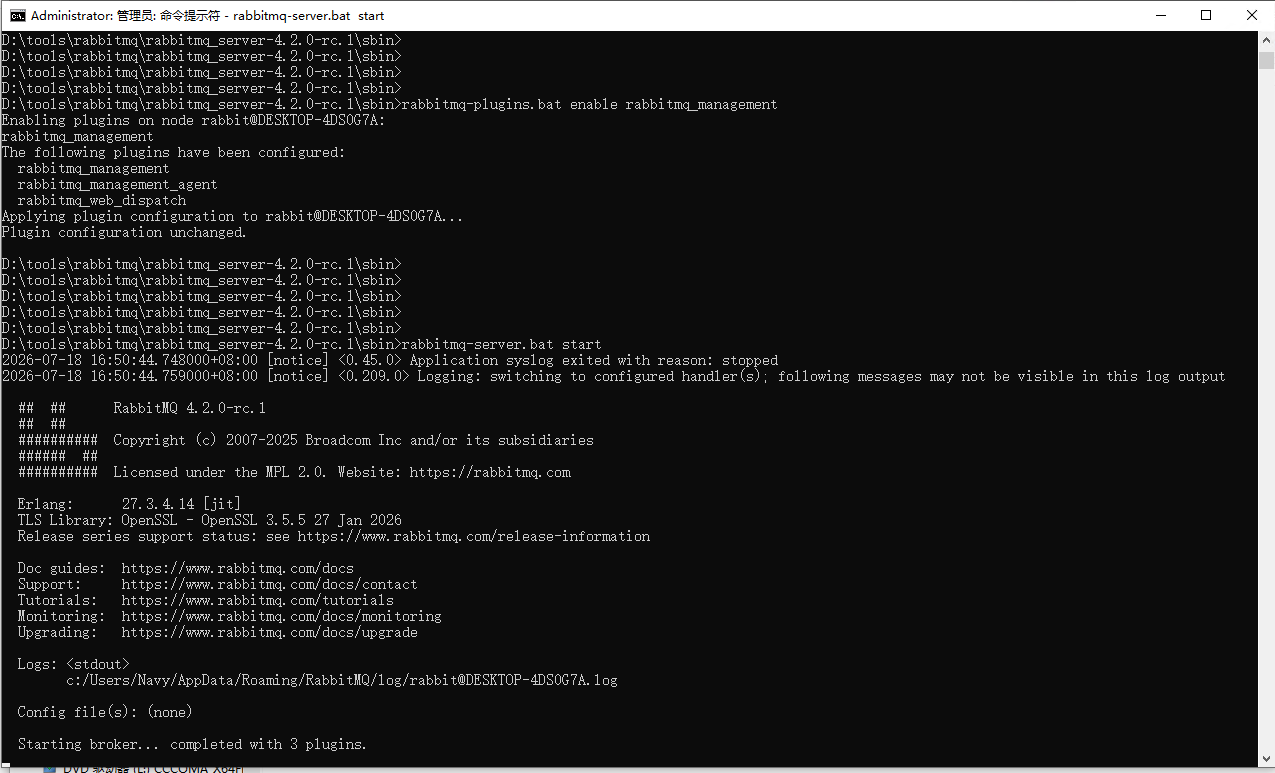

运行结果：

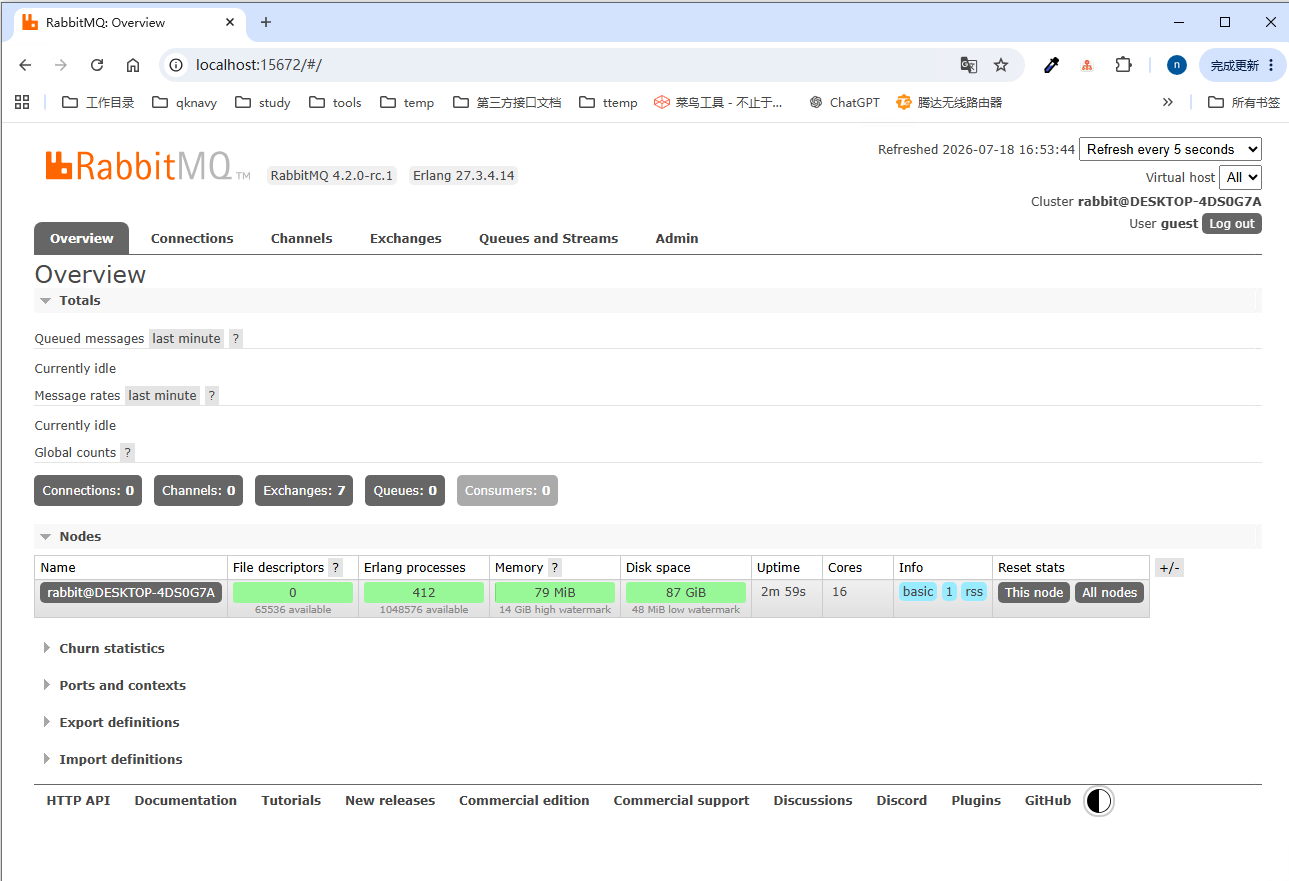

看到这个completed就说明启动成功了，我们可以打开默认的管理界面看一下：

默认的账号和密码都是guest

配置环境变量

虽然我们成功启动了rabbitmq，但是每次操作还是要先进入到安装目录的sbin目录下才能执行命令，为了方便后续操作，可以将sbin目录配置到系统PATH中

服务化

rabbitmq提供了一个命令，可以将rabbitmq注册成系统的一个服务，这样就可以让操作系统去调度，比如服务器重启后自动运行，这个命令的说明在解压后根目录的readme-service.txt，它告诉我们通过rabbitmq-service.bat install就可以将rabbitmq注册到系统服务上去，它告诉我们通过rabbitmq-service.bat enable就可以让RabbitMQ跟随系统服务进行管理

# 注意，我这里已经配置好了rabbitmq的环境变量，否则就要指定到rabbitmq-service.bat而不是直接用rabbitmq-service
D:\tools\rabbitmq\rabbitmq_server-4.2.0-rc.1>rabbitmq-service install
D:\tools\erlang\otp_win64_27.3.4.14\erts-15.2.7.10\bin\erlsrv: Service RabbitMQ added to system.

服务注册成功之后，就可以通过这里提示的服务名称来启动或停止服务了

net start RabbitMQ  # 启动rabbitmq
net stop RabbitMQ	# 停止rabbitmq

1.1.3、安装插件（以安装延迟消息插件为例）

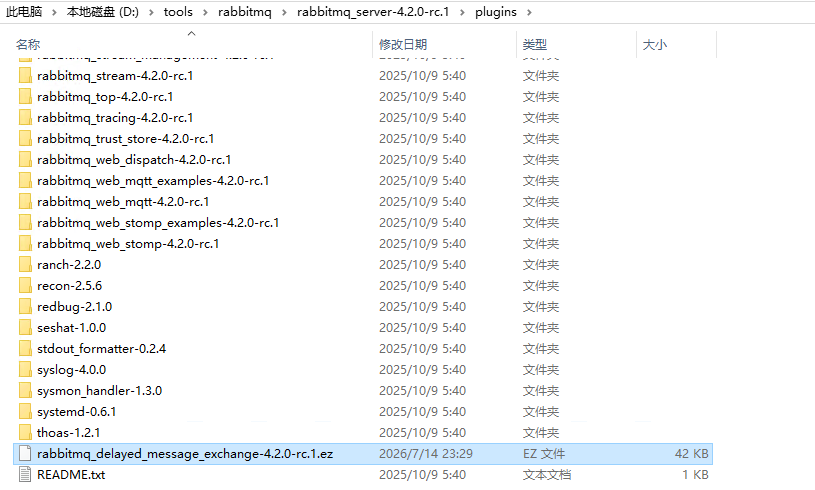

下载插件（如果rabbitmq本身没有自带），放到plugins目录下

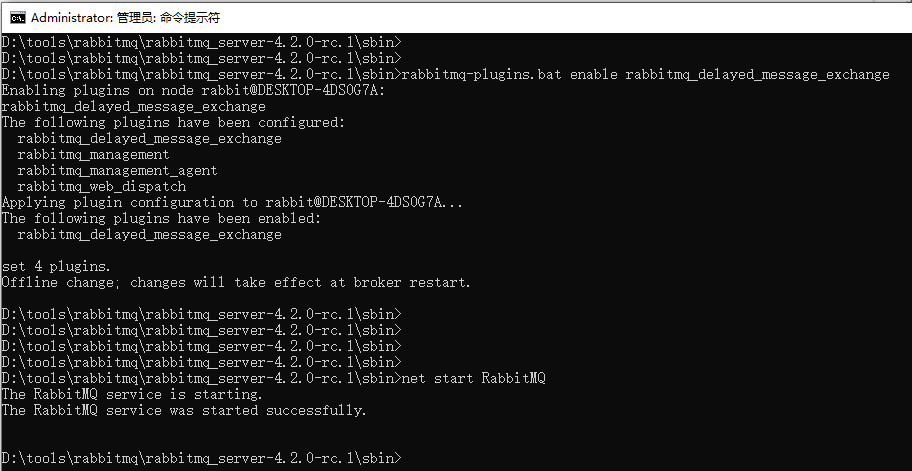

启用插件

rabbitmq-plugins enable rabbitmq_delayed_message_exchange

1.1.4、数据存储

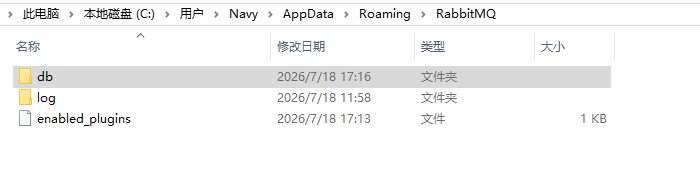

我们知道rabbitmq是典型的MQ，采用的是队列来存储消息数据，但是最终的数据持久化是如何实现的呢？其实rabbitmq采用的是一个文件类型数据库mnesia来存储的，默认的文件目录在：C:\Users\{用户名}\AppData\Roaming\RabbitMQ

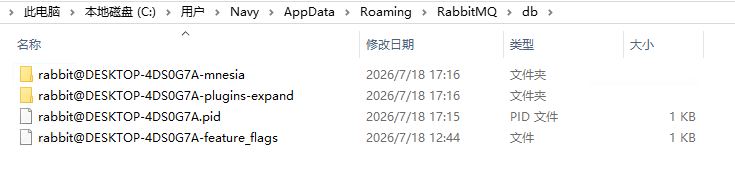

在进到db目录就是mnesia的文件存储规则了

Linux环境下的安装步骤相同，只是安装包可能不同，这里不再赘述

1.2、docker集群环境

1.2.1、创建专属网络

docker network create rabbitmqtest

1.2.2、运行RabbitMQ的docker容器

docker run -d \
 --name=rabbitmq1 \
 -p 5673:5672 \
 -p 15673:15672 \
 -e RABBITMQ_NODENAME=rabbitmq1 \
 -e RABBITMQ_ERLANG_COOKIE='hellorabbitmq' \
 -h rabbitmq1 \
 --net=rabbitmqtest \
 registry.cn-hangzhou.aliyuncs.com/xhsx/rabbitmq:4.2.0-rc.1-management



docker run -d \
 --name=rabbitmq2 \
 -p 5674:5672 \
 -p 15674:15672 \
 -e RABBITMQ_NODENAME=rabbitmq2 \
 -e RABBITMQ_ERLANG_COOKIE='hellorabbitmq' \
 -h rabbitmq2 \
 --net=rabbitmqtest \
 registry.cn-hangzhou.aliyuncs.com/xhsx/rabbitmq:4.2.0-rc.1-management



docker run -d \
 --name=rabbitmq3 \
 -p 5675:5672 \
 -p 15675:15672 \
 -e RABBITMQ_NODENAME=rabbitmq3 \
 -e RABBITMQ_ERLANG_COOKIE='hellorabbitmq' \
 -h rabbitmq3 \
 --net=rabbitmqtest \
 registry.cn-hangzhou.aliyuncs.com/xhsx/rabbitmq:4.2.0-rc.1-management

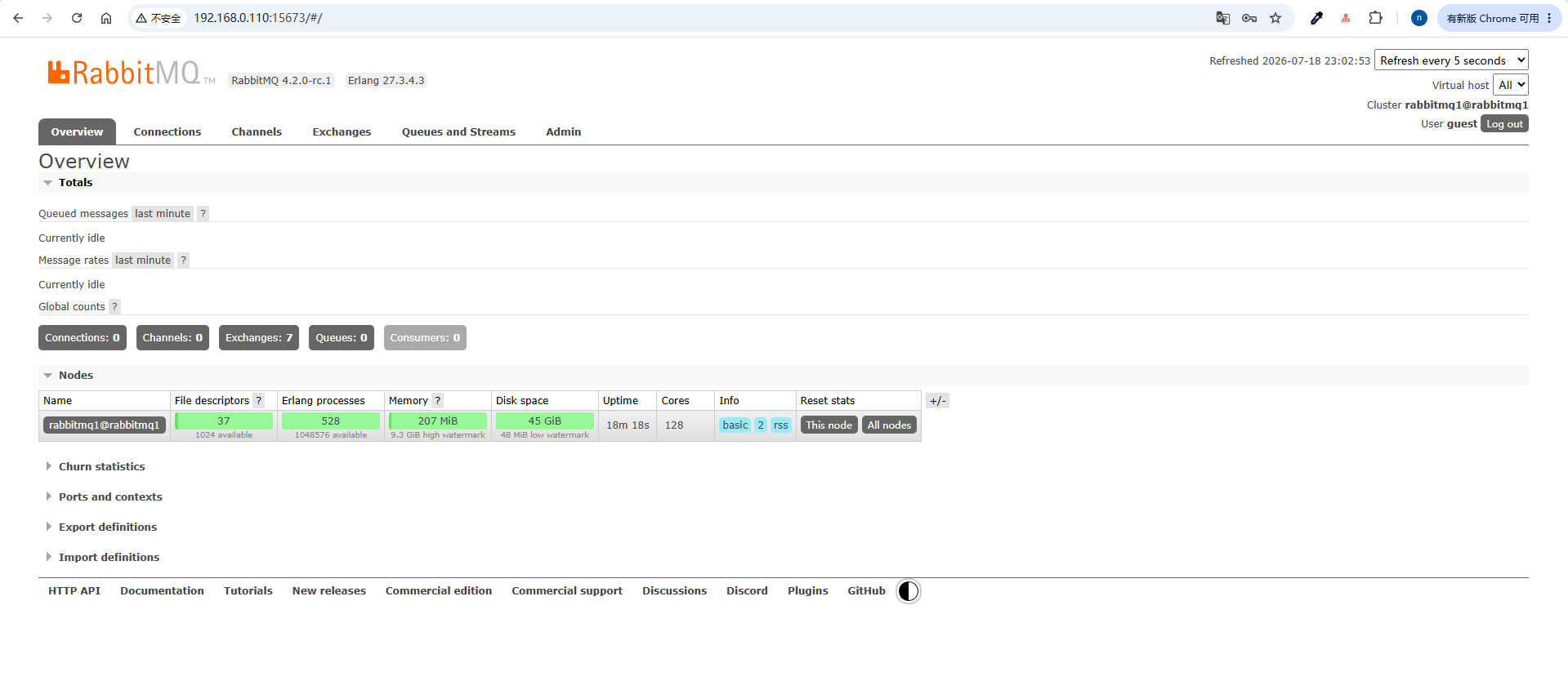

运行成功之后，用默认的guest/guest账号登录管理控制台

1.2.3、创建集群

进入第二、三个容器，并将其以内存节点的角色加入到第一个容器里边，工程组成3个节点的集群

docker exec -it rabbitmq2 /bin/bash
rabbitmqctl stop_app
rabbitmqctl reset
rabbitmqctl join_cluster rabbitmq1@rabbitmq1
rabbitmqctl start_app


docker exec -it rabbitmq3 /bin/bash
rabbitmqctl stop_app
rabbitmqctl reset
rabbitmqctl join_cluster rabbitmq1@rabbitmq1
rabbitmqctl start_app

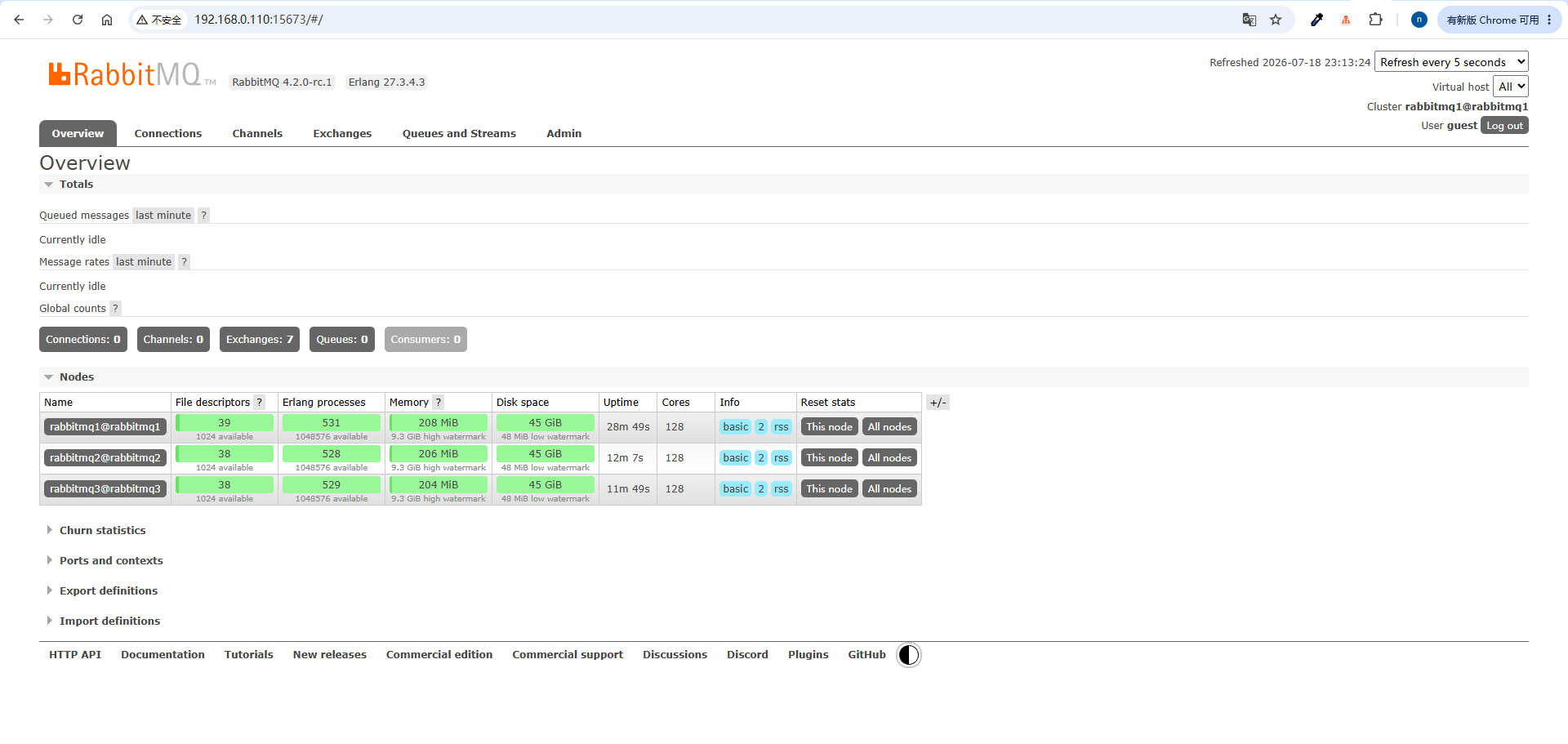

执行完成后，再看集群节点状态，可以看大有三个节点了

1.3、k8s集群环境

1.2.1、资源文件

注：这里所用到的命名空间是middleware，可以根据自己的情况酌情修改

1.2.1.1、configMap配置

cm.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: rmq-cluster-config
  namespace: middleware
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
data:
    enabled_plugins: |
      [rabbitmq_management,rabbitmq_peer_discovery_k8s].
    rabbitmq.conf: |
      loopback_users.guest = false

      ## Clustering
      cluster_formation.peer_discovery_backend = rabbit_peer_discovery_k8s
      cluster_formation.k8s.host = kubernetes.default.svc.cluster.local
      cluster_formation.k8s.address_type = hostname
      #################################################
      # middleware is rabbitmq-cluster's namespace#
      #################################################
      cluster_formation.k8s.hostname_suffix = .rmq-cluster.middleware.svc.cluster.local
      cluster_formation.node_cleanup.interval = 10
      cluster_formation.node_cleanup.only_log_warning = true
      cluster_partition_handling = autoheal
      ## queue master locator
      queue_master_locator=min-masters

enabled_plugins：默认启用的插件

1.2.1.2、secret

secret.yaml：

apiVersion: v1
kind: Secret
metadata:
  name: rmq-cluster-secret
  namespace: middleware
stringData:
  cookie: ERLANG_COOKIE
  username: admin
  password: abc12345!@@@
type: Opaque

1.2.1.3、service服务

svc.yaml

apiVersion: v1
kind: Service
metadata:
  name: rmq-cluster
  namespace: middleware
  labels:
    app: rmq-cluster
spec:
  selector:
    app: rmq-cluster
  clusterIP: 10.96.0.11              #指定clusterIP，也可以用None不指定，访问的时候直接用serviceName+端口号
  ports:
  - name: http
    port: 15672
    protocol: TCP
    targetPort: 15672
  - name: amqp
    port: 5672
    protocol: TCP
    targetPort: 5672
  type: ClusterIP

1.2.1.4、pvc存储

注：这里用了nfs的storageClass动态分配存储空间，sc的定义如下：

sc.yaml：

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  namespace: middleware
  name: sx-managed-nfs-storage
provisioner: sx-nfs-client-provisioner # or choose another name, must match deployment's env PROVISIONER_NAME'
parameters:
  archiveOnDelete: "false"


---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: middleware
  name: sx-nfs-client-provisioner
spec:
  replicas: 1
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: nfs-client-provisioner
  template:
    metadata:
      namespace: middleware
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccount: nfs-client-provisioner
      containers:
      - name: sx-nfs-client-provisioner
        imagePullPolicy: IfNotPresent
        image: registry.cn-hangzhou.aliyuncs.com/xhsx/nfs-subdir-external-provisioner:v4.0.0
        volumeMounts:
        - name: sx-nfs-client-root
          mountPath: /persistentvolumes
        env:
        - name: PROVISIONER_NAME
          value: sx-nfs-client-provisioner
        - name: NFS_SERVER
          value: 192.168.0.1
        - name: NFS_PATH
          value: /nfs_win/k8s
      volumes:
      - name: sx-nfs-client-root
        nfs:
          server: 192.168.0.1
          path: /nfs_win/k8s

这里用到了一个serviceAccount，定义如下：

serviceAccount.yaml：

---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  namespace: middleware
  name: nfs-client-provisioner-runner
rules:
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  namespace: middleware
  name: run-nfs-client-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    namespace: middleware
roleRef:
  kind: ClusterRole
  name: nfs-client-provisioner-runner
  apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  namespace: middleware
  name: leader-locking-nfs-client-provisioner
rules:
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  namespace: middleware
  name: leader-locking-nfs-client-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    # replace with namespace where provisioner is deployed
    namespace: middleware
roleRef:
  kind: Role
  name: leader-locking-nfs-client-provisioner
  apiGroup: rbac.authorization.k8s.io


---
kind: ServiceAccount
apiVersion: v1
metadata:
  namespace: middleware
  name: nfs-client-provisioner

pvc.yaml：

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: rabbitmq-cluster-storage
  namespace: middleware
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 10Gi
  storageClassName: sx-managed-nfs-storage

1.2.1.5、statefulSet

sts.yaml：

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: rmq-cluster
  namespace: middleware
  labels:
    app: rmq-cluster
spec:
  replicas: 3
  selector:
    matchLabels:
      app: rmq-cluster
  serviceName: rmq-cluster
  template:
    metadata:
      labels:
        app: rmq-cluster
    spec:
      serviceAccountName: nfs-client-provisioner
      terminationGracePeriodSeconds: 30
      containers:
      - name: rabbitmq
        image: registry.cn-hangzhou.aliyuncs.com/xhsx/rabbitmq:3.7-management
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 15672
          name: http
          protocol: TCP
        - containerPort: 5672
          name: amqp
          protocol: TCP
        command:
        - sh
        args:
        - -c
        - cp -v /etc/rabbitmq/rabbitmq.conf ${RABBITMQ_CONFIG_FILE}; exec docker-entrypoint.sh
          rabbitmq-server
        env:
        - name: TZ
          value: Asia/Shanghai
        - name: RABBITMQ_DEFAULT_USER
          valueFrom:
            secretKeyRef:
              key: username
              name: rmq-cluster-secret
        - name: RABBITMQ_DEFAULT_PASS
          valueFrom:
            secretKeyRef:
              key: password
              name: rmq-cluster-secret
        - name: RABBITMQ_ERLANG_COOKIE
          valueFrom:
            secretKeyRef:
              key: cookie
              name: rmq-cluster-secret
        - name: K8S_SERVICE_NAME
          value: rmq-cluster
        - name: POD_IP
          valueFrom:
            fieldRef:
              fieldPath: status.podIP
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: RABBITMQ_USE_LONGNAME
          value: "true"
        - name: RABBITMQ_NODENAME
          value: rabbit@$(POD_NAME).rmq-cluster.$(POD_NAMESPACE).svc.cluster.local
        - name: RABBITMQ_CONFIG_FILE
          value: /var/lib/rabbitmq/rabbitmq.conf
        livenessProbe:
          exec:
            command:
            - rabbitmqctl
            - status
          initialDelaySeconds: 30
          timeoutSeconds: 10
        readinessProbe:
          exec:
            command:
            - rabbitmqctl
            - status
          initialDelaySeconds: 10
          timespec.template.spec.outSeconds: 10
        volumeMounts:
        - name: config-volume
          mountPath: /etc/rabbitmq
          readOnly: false
        - name: rabbitmq-storage
          mountPath: /var/lib/rabbitmq
          readOnly: false
      volumes:
      - name: config-volume
        configMap:
          items:
          - key: rabbitmq.conf
            path: rabbitmq.conf
          - key: enabled_plugins
            path: enabled_plugins
          name: rmq-cluster-config
      - name: rabbitmq-storage
        persistentVolumeClaim:
          claimName: rabbitmq-cluster-storage

注意几个配置要和上面定义的相同：
spec.template.spec.volumes.persistentVolumeClaim.claimName
spec.template.spec.volumes.configMap.name
spec.template.spec.serviceAccountName
spec.serviceName

按照依赖顺序分别apply一下即可完成rabbitmq集群的构建

kubectl apply -f cm.yaml
kubectl apply -f secret.yaml
kubectl apply -f svc.yaml
kubectl apply -f serviceAccount.yaml
kubectl apply -f sc.yaml
kubectl apply -f pvc.yaml
kubectl apply -f sts.yaml

1.2.1.6、访问

管理后台界面

虽然经过上面的步骤搭建了一个rabbitmq集群，但是如果是在k8s集群之外访问，则需要暴露一个nodePort类型的service出来，我这里是用了ingress-nginx网络

ingress.yaml：

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  namespace: middleware
  name: rabbitmq-ingress
spec:
  ingressClassName: nginx
  rules:
    - host: rabbitmq.shengxiao.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: rmq-cluster
                port:
                  number: 15672

ubuntu@k8s-master-01:~/k8s/rabbitmq$ sudo kubectl -n ingress-nginx get po -o wide
NAME                                        READY   STATUS      RESTARTS      AGE   IP              NODE            NOMINATED NODE   READINESS GATES
ingress-nginx-admission-create-s4b4c        0/1     Completed   0             19d   <none>          k8s-worker-03   <none>           <none>
ingress-nginx-admission-patch-grl6l         0/1     Completed   0             19d   <none>          k8s-worker-01   <none>           <none>
ingress-nginx-controller-74b49756b9-q4npk   1/1     Running     2 (15d ago)   19d   192.168.0.141   k8s-worker-01   <none>           <none>

可以看到我的ingress-nginx-controller运行在了192.168.0.141这个节点上的，所以我配置了自定义域名rabbitmq.shengxiao.com的本地映射，具体就是在我要访问rabbitmq的机器的hosts文件中添加一行记录：

192.168.0.141	rabbitmq.shengxiao.com

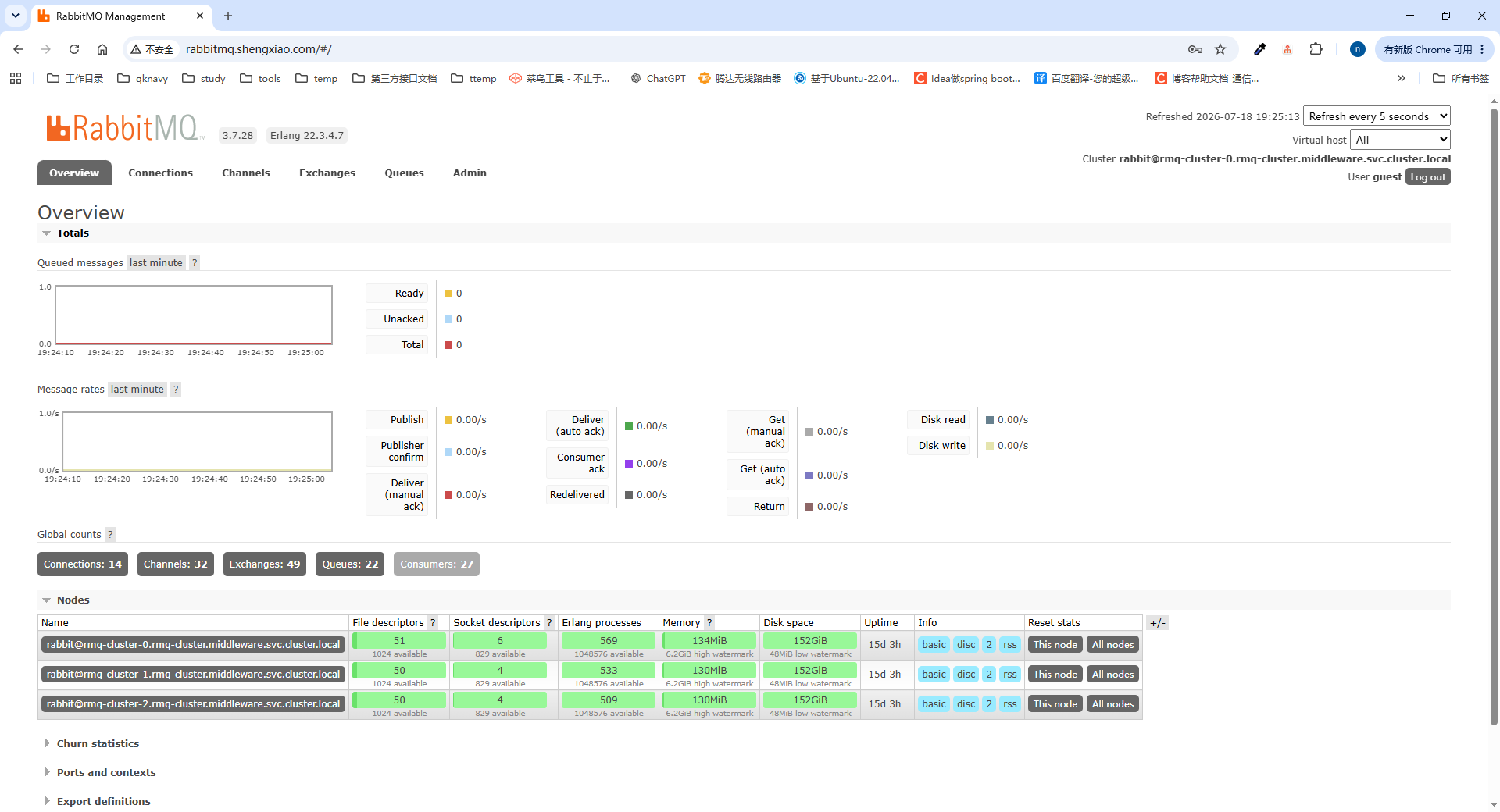

最后访问这个自定义域名访问集群（默认的账号密码：guest / guest）：

应用访问

上面演示了如何访问rabbitmq的后台界面，但是在我们的应用代码中，如果想要往broker发送消息或者监听消息，通过的端口号是5672，这个时候如果是在k8s集群外部，就需要暴露一个nodePort，具体可以参考下面定义：

nodePort.yaml：

apiVersion: v1
kind: Service
metadata:
  labels:
    app: rmq-cluster
  name: rabbitmq-svc-nodeport
  namespace: middleware
spec:
  type: NodePort
  ports:
  - port: 5672
    protocol: TCP
    targetPort: 5672
    nodePort: 30672
  selector:
    app: rmq-cluster

这样，在配置rabbitmq的配置的时候就可以这样配置：

spring.rabbitmq.host=192.168.0.141
spring.rabbitmq.port=30672
spring.rabbitmq.virtual-host=/
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest

spring.rabbitmq.host可以随便配置一个k8s的节点IP

当然，如果是在k8s集群内部的应用访问，则可以直接通过serviceName来访问，这时候rabbitmq的配置文件就可以改成这样：

spring.rabbitmq.addresses=rmq-cluster.middleware:5672
spring.rabbitmq.virtual-host=/
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest

rmq-cluster：前面定义的serviceName
middleware：命名空间名称
5672：定义service的时候的service端口号

2、RabbitMQ上手体验

SpringBoot集成

2.1、添加依赖

<properties>
    <maven.compiler.source>8</maven.compiler.source>
    <maven.compiler.target>8</maven.compiler.target>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <spring.boot.version>2.7.18</spring.boot.version>
</properties>

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-amqp</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-logging</artifactId>
    </dependency>
</dependencies>


<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-dependencies</artifactId>
            <version>${spring.boot.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

2.2、配置文件

2.2.1、springboot配置文件

spring.rabbitmq.addresses=localhost:5672
spring.rabbitmq.virtual-host=test
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest

# 日志配置文件路径
logging.config=classpath:logback.xml

2.2.2、日志配置文件

<configuration scan="true" scanPeriod="60 seconds" debug="false">
    <appender name="console" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <!--格式化输出：%d表示日期，%thread表示线程名，%-5level：级别从左显示5个字符宽度,%msg：日志消息，%n是换行符-->
            <pattern>%d{yyyy-MM-dd HH:mm:ss,SSS} :[ %-5level] %thread %logger{50} - %msg%n</pattern>
        </encoder>
    </appender>

    <root level="INFO">
        <appender-ref ref="console"/>
    </root>
</configuration>

2.3、代码

2.3.1、配置类

package com.study.rabbitmq.config;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.HashMap;
import java.util.Map;

@Configuration
public class RabbitMQConfiguration {

    private static final Logger logger = LoggerFactory.getLogger(RabbitMQConfiguration.class);

    // 直连类型交换机
    @Bean("directExchange")
    public DirectExchange getDirectExchange(){
        return new DirectExchange("test_direct_exchange");
    }

    // 第一个队列：绑定到直连交换机上
    @Bean("directQueue")
    public Queue getDirectQueue(){
        Map<String, Object> args = new HashMap<String, Object>();
        args.put("x-message-ttl",6000);
        Queue queue = new Queue("direct_queue", false, false, true, args);
        return queue;
    }

    // 创建交换机-队列绑定关系
    @Bean
    public Binding bindDirectQueue(@Qualifier("directQueue") Queue queue, @Qualifier("directExchange") DirectExchange exchange){
        return BindingBuilder.bind(queue).to(exchange).with("points.change");
    }







    // 主题类型交换机
    @Bean("topicExchange")
    public TopicExchange getTopicExchange(){
        return new TopicExchange("test_topic_exchange");
    }

    @Bean("topicFirstQueue")
    public Queue getTopicFirstQueue(){
        return new Queue("topic_first_queue");
    }

    @Bean("topicSecondQueue")
    public Queue getTopicSecondQueue(){
        return new Queue("topic_second_queue");
    }

    // 创建交换机-队列绑定关系
    @Bean
    public Binding bindTopicFirstQueue(@Qualifier("topicFirstQueue") Queue queue, @Qualifier("topicExchange") TopicExchange exchange){
        return BindingBuilder.bind(queue).to(exchange).with("order.#");
    }
    // 创建交换机-队列绑定关系
    @Bean
    public Binding bindTopicSecondQueue(@Qualifier("topicSecondQueue") Queue queue, @Qualifier("topicExchange") TopicExchange exchange){
        return BindingBuilder.bind(queue).to(exchange).with("user.#");
    }





    // 广播类型交换机
    @Bean("fanoutExchange")
    public FanoutExchange getFanoutExchange(){
        return  new FanoutExchange("test_fanout_exchange");
    }

    @Bean("fanoutFirstQueue")
    public Queue getfirstFanoutQueue(){
        return new Queue("fanout_first_queue");
    }

    @Bean("fanoutSecondQueue")
    public Queue getSecondFanoutQueue(){
        return new Queue("fanout_second_queue");
    }

    @Bean
    public Binding bindFanoutFirstQueue(@Qualifier("fanoutFirstQueue") Queue queue,@Qualifier("fanoutExchange") FanoutExchange exchange){
        return BindingBuilder.bind(queue).to(exchange);
    }

    @Bean
    public Binding bindFanoutSecondQueue(@Qualifier("fanoutSecondQueue") Queue queue,@Qualifier("fanoutExchange") FanoutExchange exchange){
        return BindingBuilder.bind(queue).to(exchange);
    }
}

注：

这里在代码里进行了交换机、队列以及它们之间的绑定关系，实际工作中应该由管理员在管理后台手动创建
这里先上手体验，后续再分析他们的工作原理、区别以和特性
这里我定义了3个交换机：一个直连交换机、一个主题类型交换机、一个广播类型交换机
直连类型交换机绑定了一个队列、主题类型绑定了两个队列、广播类型交换机绑定了两个队列

2.3.2、生产者

package com.study.rabbitmq.producer;

import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Component;
import javax.annotation.Resource;

@Component
public class RabbitMqProducer {

    @Resource
    private RabbitTemplate rabbitTemplate;

    public void sendMessage(String exchange, String routingKey, String message){
        this.rabbitTemplate.convertAndSend(exchange, routingKey, message);
    }
}

2.3.3、消费者

上面定义了5个队列，这里定义5个消费者分别来消费这5个队列里的消息

DirectQueueConsumer.java：消费绑定直连交换机的队列

package com.study.rabbitmq.consumer;

import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
@RabbitListener(queues = "direct_queue")
public class DirectQueueConsumer {

    @RabbitHandler
    public void process(String msg){
        System.out.println(" direct queue received msg : " + msg);
    }
}

TopicFirstQueueConsumer.java：消费绑定第一个主题类型交换机的队列

package com.study.rabbitmq.consumer;

import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
@RabbitListener(queues = "topic_first_queue")
public class TopicFirstQueueConsumer {

    @RabbitHandler
    public void process(String msg){
        System.out.println(" topic first queue received msg : " + msg);
    }
}

TopicSecondQueueConsumer.java：消费绑定第二个主题类型交换机的队列

package com.study.rabbitmq.consumer;

import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
@RabbitListener(queues = "topic_second_queue")
public class TopicSecondQueueConsumer {

    @RabbitHandler
    public void process(String msg){
        System.out.println(" topic second queue received msg : " + msg);
    }
}

FanoutFirstQueueConsumer.java：消费绑定第一个广播类型交换机的队列

package com.study.rabbitmq.consumer;

import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
@RabbitListener(queues = "fanout_first_queue")
public class FanoutFirstQueueConsumer {

    @RabbitHandler
    public void process(String msg){
        System.out.println(" fanout first queue received msg : " + msg);
    }
}

FanoutSecondQueueConsumer.java：消费绑定第二个广播类型交换机的队列

package com.study.rabbitmq.consumer;

import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
@RabbitListener(queues = "fanout_second_queue")
public class FanoutSecondQueueConsumer {

    @RabbitHandler
    public void process(String msg){
        System.out.println(" fanout second queue received msg : " + msg);
    }
}

2.3.4、定义一个接口，用来发送消息

package com.study.rabbitmq.controller;

import com.study.rabbitmq.bean.SendMessageRequest;
import com.study.rabbitmq.producer.RabbitMqProducer;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;

@RestController
@RequestMapping("/message")
public class MessageController {

    @Resource
    private RabbitMqProducer rabbitMqProducer;


    @PostMapping("/send")
    public void sendMessage(@RequestBody SendMessageRequest request){
        this.rabbitMqProducer.sendMessage(request.getExchange(),request.getRoutingKey(), request.getMessage());
    }
}

2.3.5、启动类

package com.study.rabbitmq;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class RabbitMqBootstrap {

    public static void main(String[] args) {
        SpringApplication.run(RabbitMqBootstrap.class, args);
    }
}

2.4、运行

2.4.1、启动

启动程序，可以在管理后台看到交换机和队列已经自动给我们创建好了，并且也自动建立了绑定关系

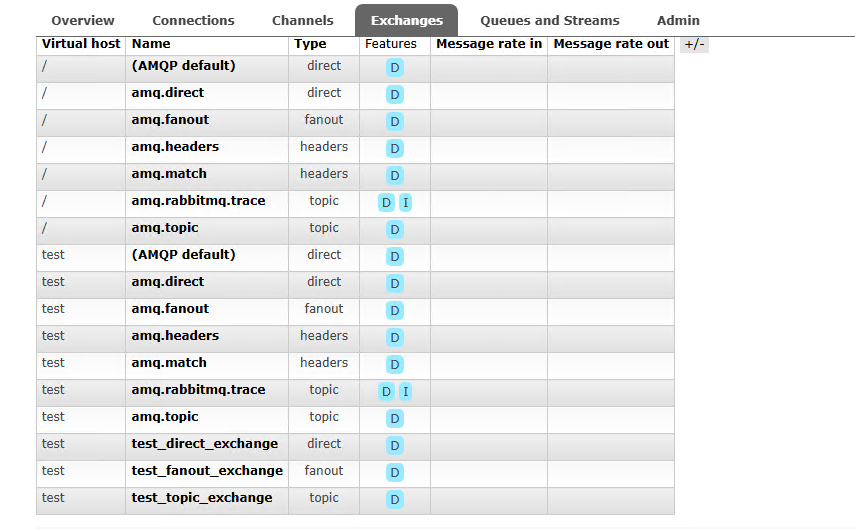

交换机：

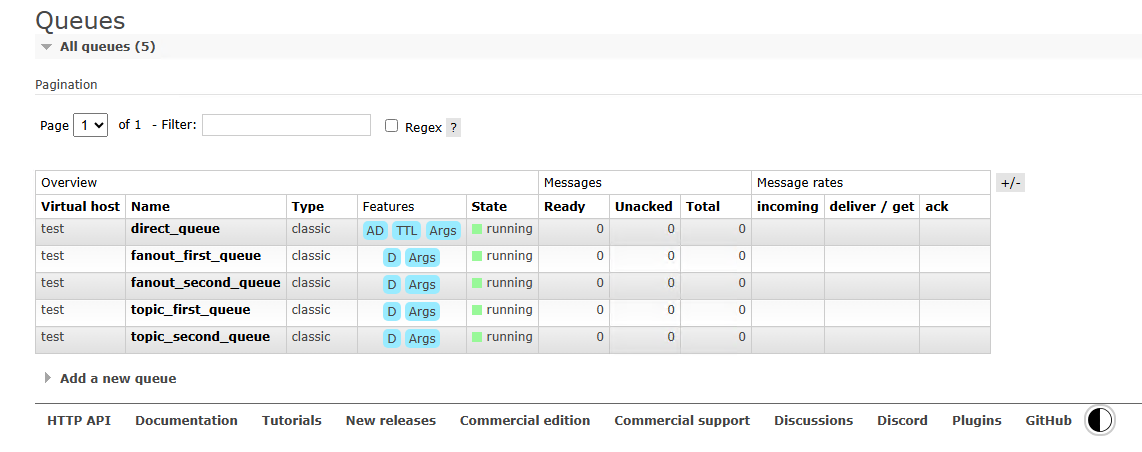

队列：

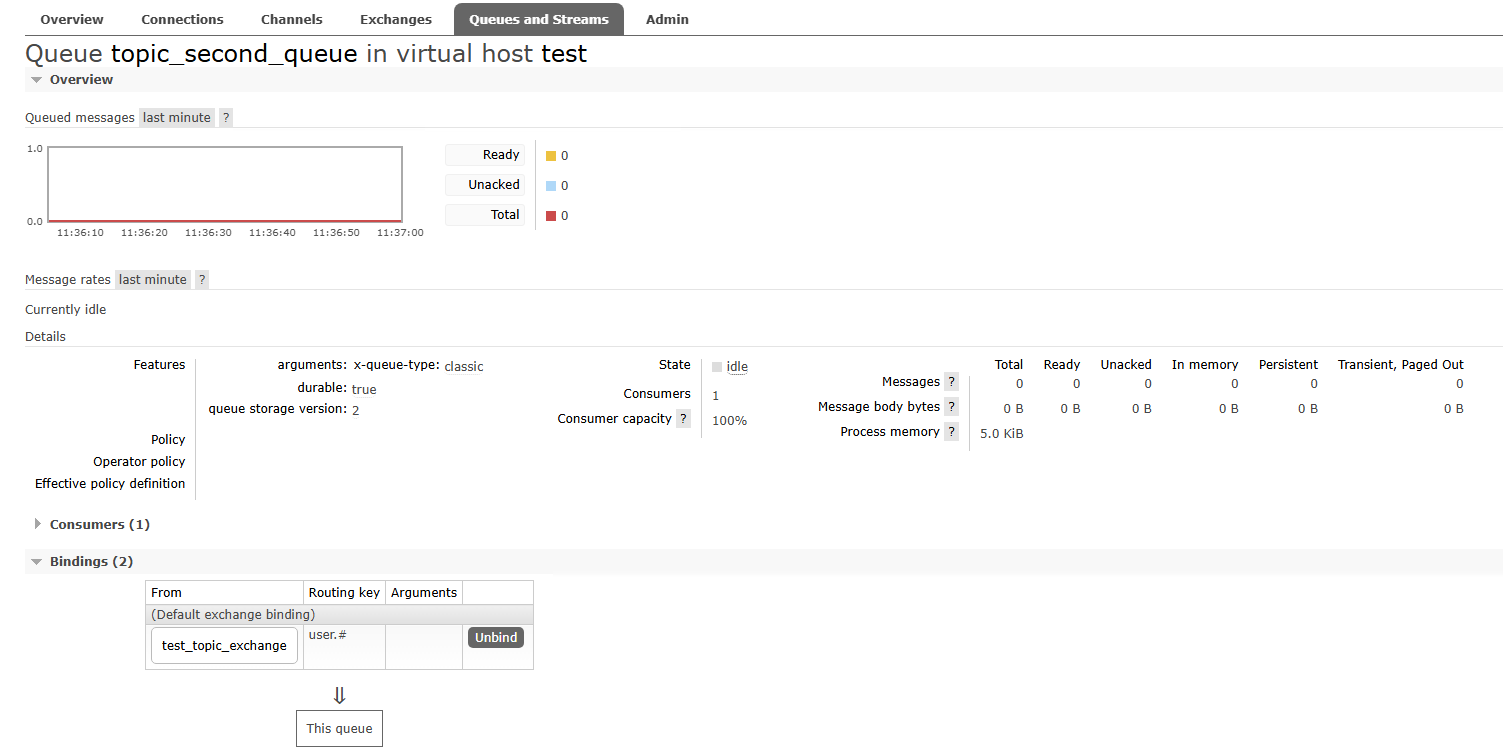

队列绑定关系：

2.4.2、发送消息

2.4.2.1、直连交换机

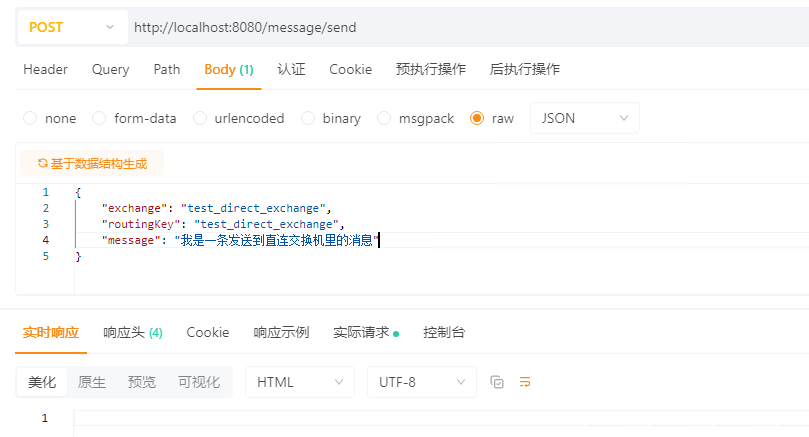

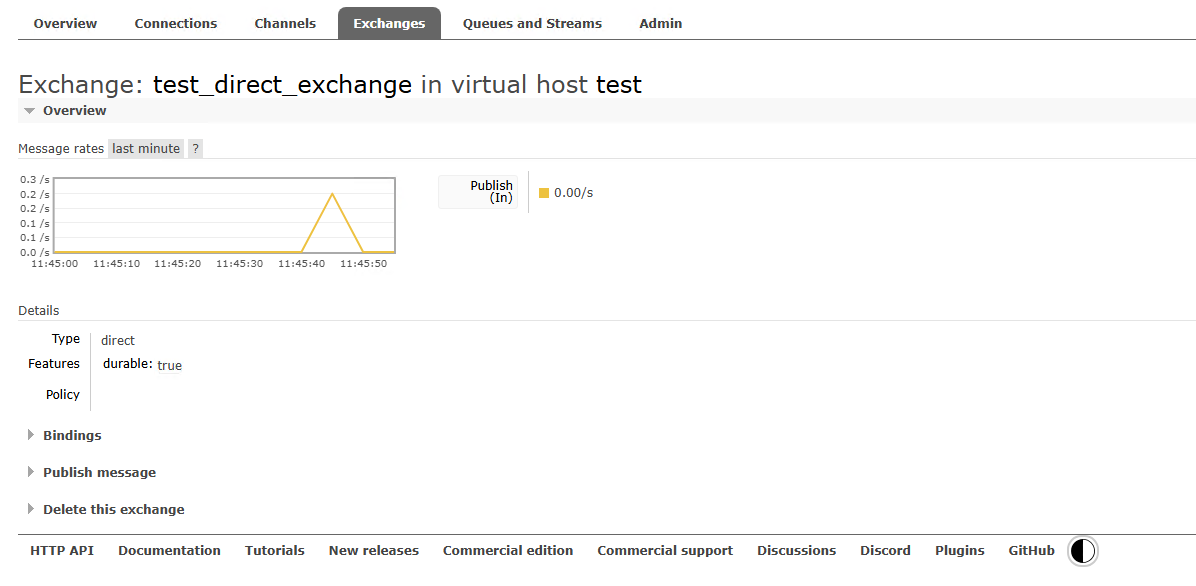

由于我们在定义绑定关系的时候定义的routingKey是points.change，这里我们在发送消息的时候是随便写的，点击发送后发现消息已经成功被队列接收

但是消费端并没有接收到对应的消息，接下来我们改成正确的routingKey重新请求

{
    "exchange": "test_direct_exchange",
    "routingKey": "points.change",
    "message": "我是一条发送到直连交换机里的消息"
}

可以看到消费端正确拿到了消息：

2.4.2.2、主题类型交换机

修改发送消息的请求体：

{
    "exchange": "test_topic_exchange",
    "routingKey": "order.created",
    "message": "我是订单创建消息"
}

这里将交换机改成了主题类型的交换机，routingKey设置为“order.created”，看最终被哪个队列的消费者接收到，发送请求，查看代码控制台

可以看到消息被主题类型交换机绑定的第一个队列收到了，从上面的定义可以看到它们的绑定路由键是"order.#"，而第二个队列的绑定路由键是"user.#"，而我们在发送消息的时候的routingKey是"order.created"，大概就知道他们的关系了吧？

注：这里还涉及一个*和.的区别，只是不在这里阐述，后续再进行介绍

2.4.2.3、广播类型交换机

继续修改发送消息的请求体：

{
    "exchange": "test_fanout_exchange",
    "routingKey": "order.created",
    "message": "我是发往广播类型交换机的消息"
}

这里只是改一下交换机的名称，看最终控制台打印出来的结果：

可以看到绑定到广播类型交换机的两个队列的消费者都收到了消息

1、RabbitMQ环境搭建和上手体验

页面导航
